Nguyễn Đức An

Here is some knowledge about low-level system design

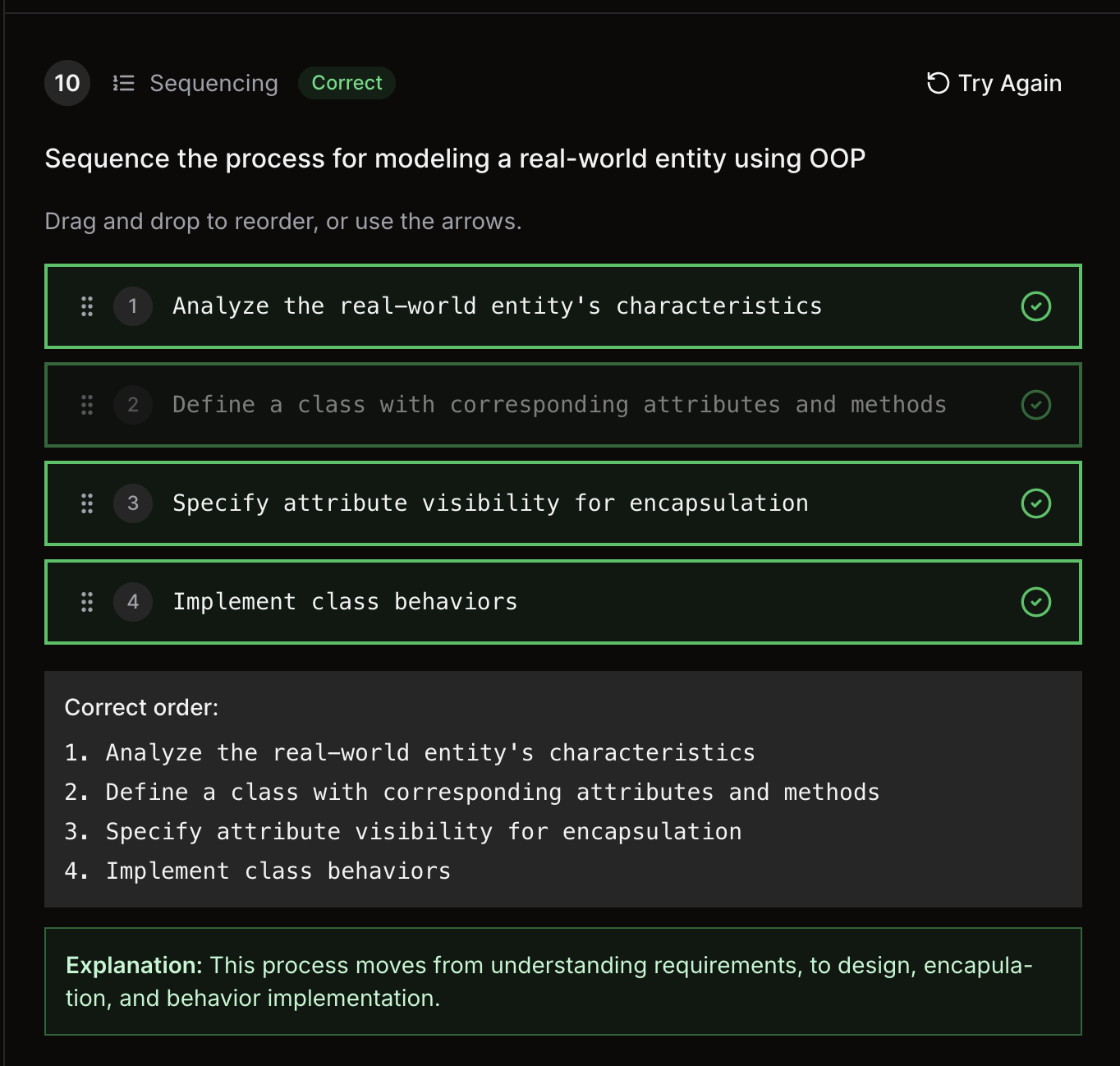

1. Define entities như thế nào ?



2. Class Design

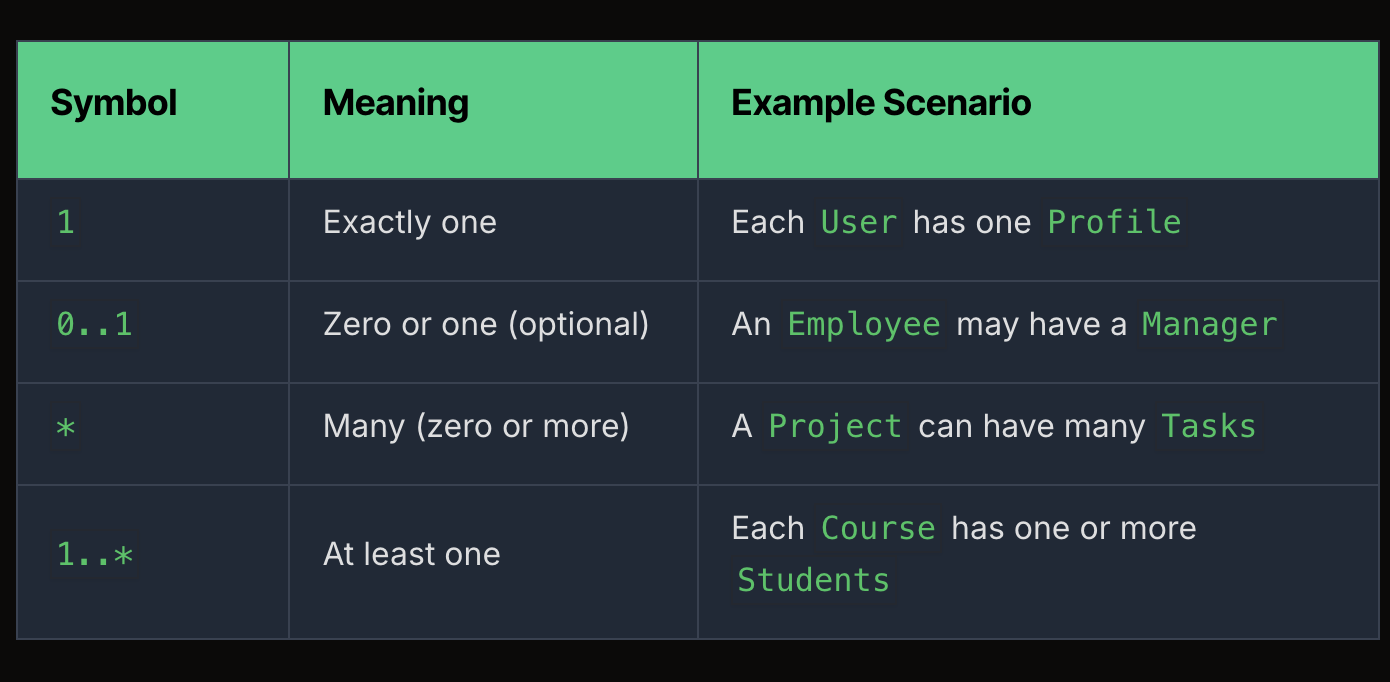

   1. Association

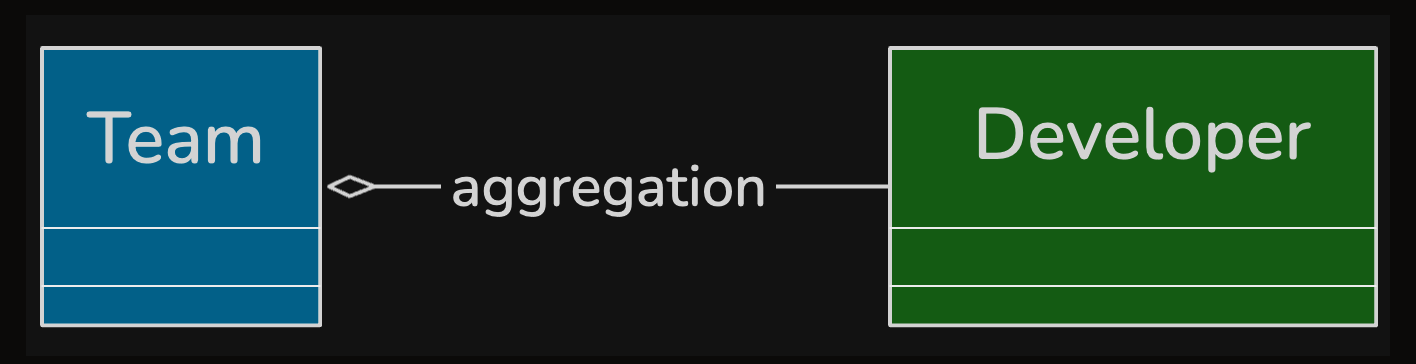

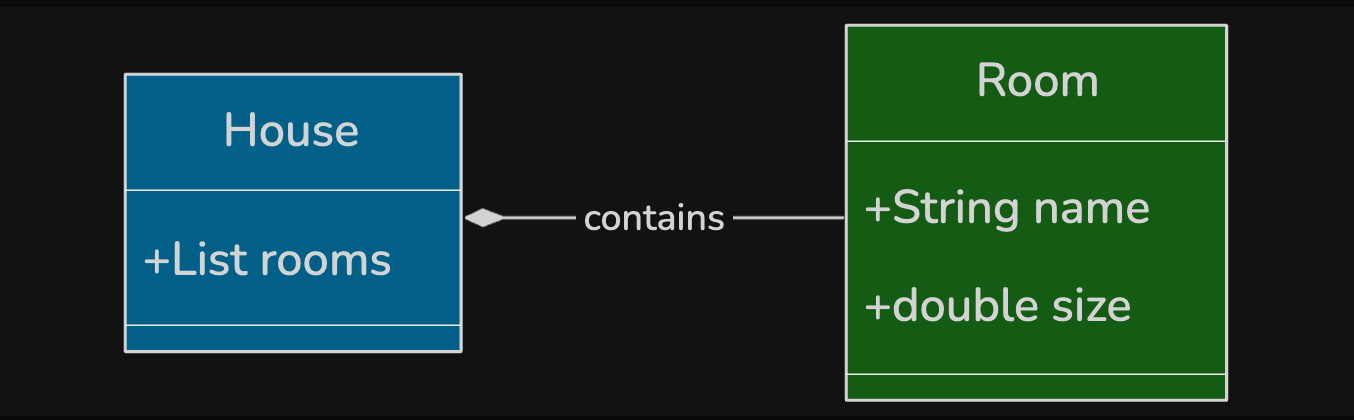

   2. Aggregation - Belong to, Composition - Bao gồm





   3. Dependency

      • Liên quan bao gồm.
3. Design Principle
   1. Don’t repeat yourself.
   2. Keep it simple
   3. You Aren’t Gonna Need It.
   4. Law of Demeter - Push the responsibility to the class know the most.
   5. Separation of concerns - Split to mulitple layers.
   6. High Cohesion (độc lập) - Low Coupling (ít depend)
   7. Use interface in class to decouping
4. SOLID principles
   • S: module 1 trách nhiệm
   • O: thêm code chứ không sửa
   • L: thằng con overwrite vào phải implement tất cả method của thằng cha.
   • I: Interface nhiều quá thì tách nhiều interface
   • D: Dependency inversion thay vì dùng New → New → chaining.

5. Low-level Design

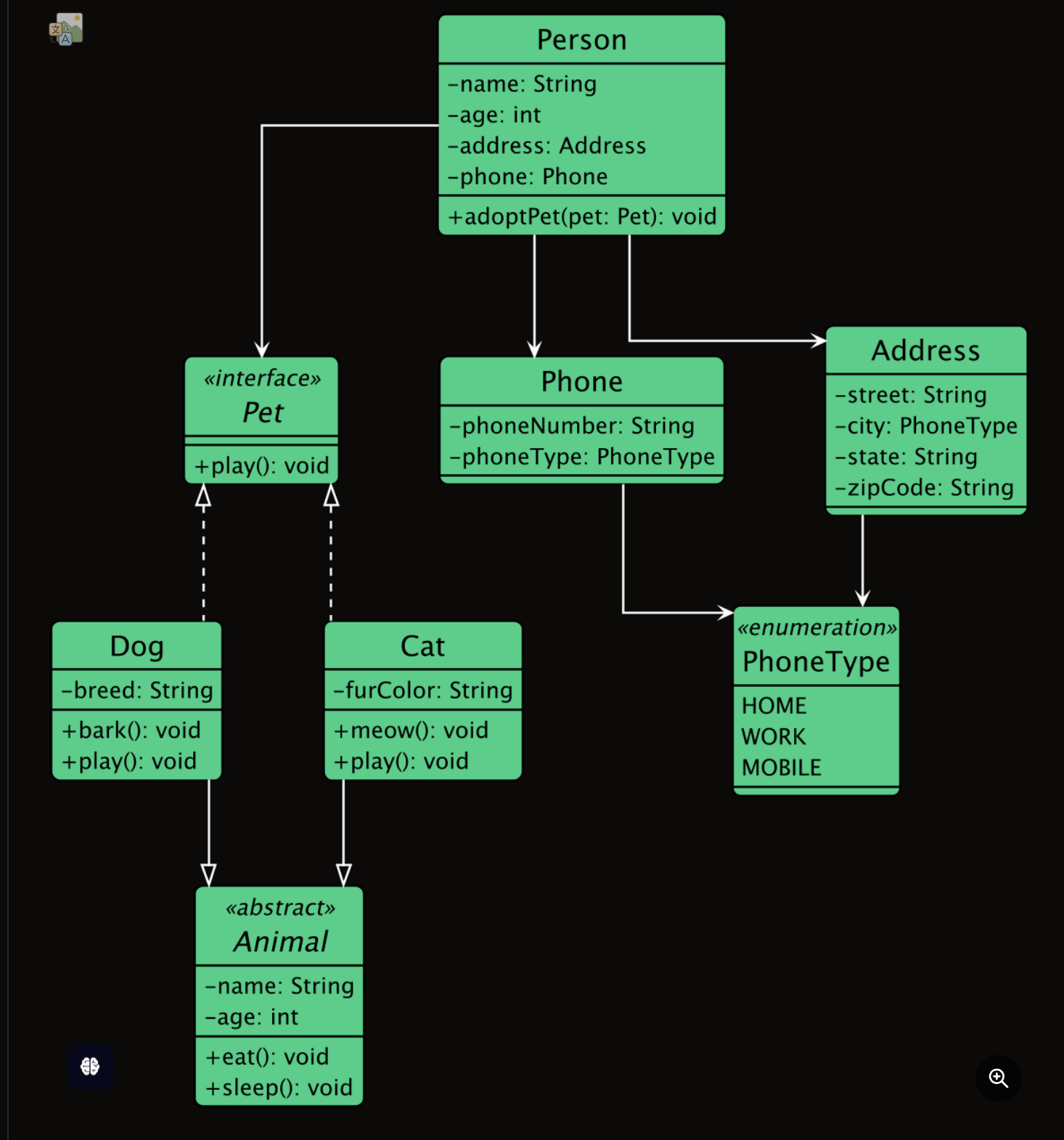

   1. Class Diagram

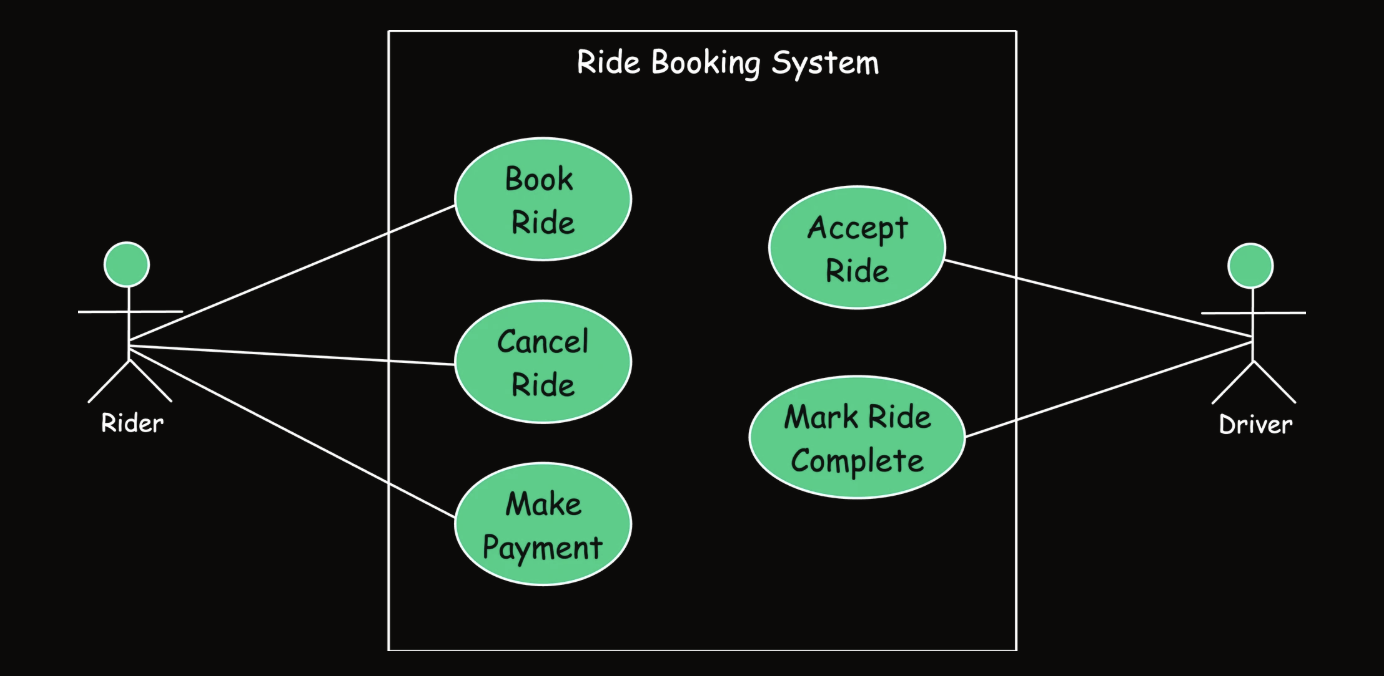

   2. Use Case Diagram

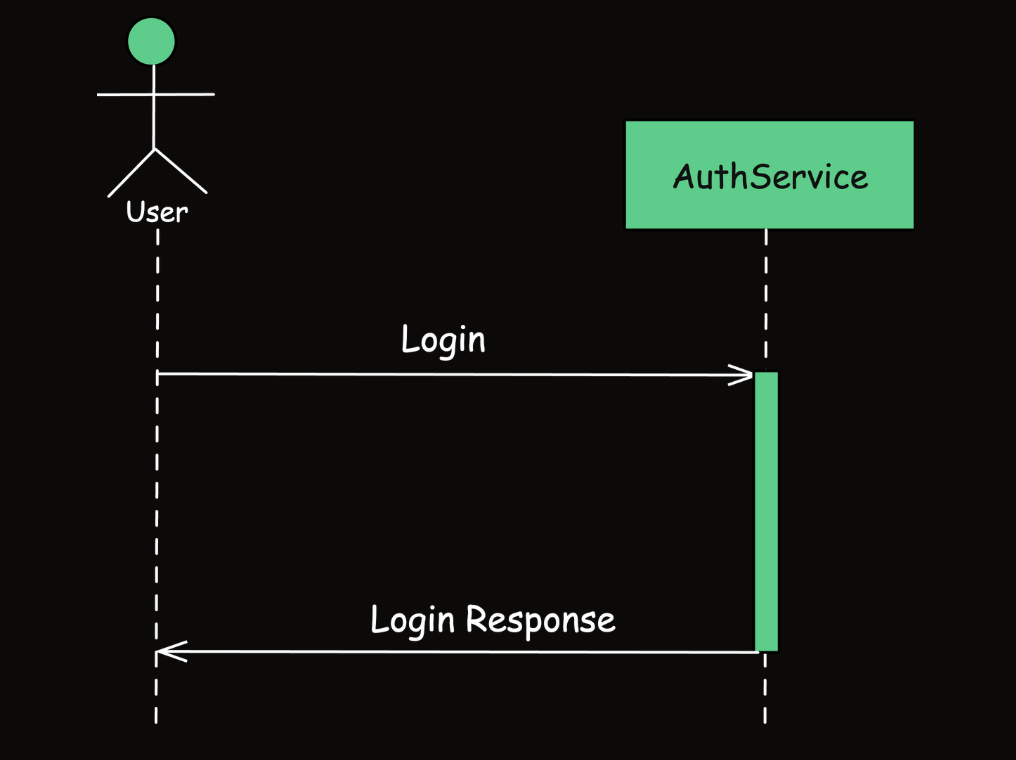

   3. Sequence Diagram



6. Design Patterns

   1. Creational Pattern

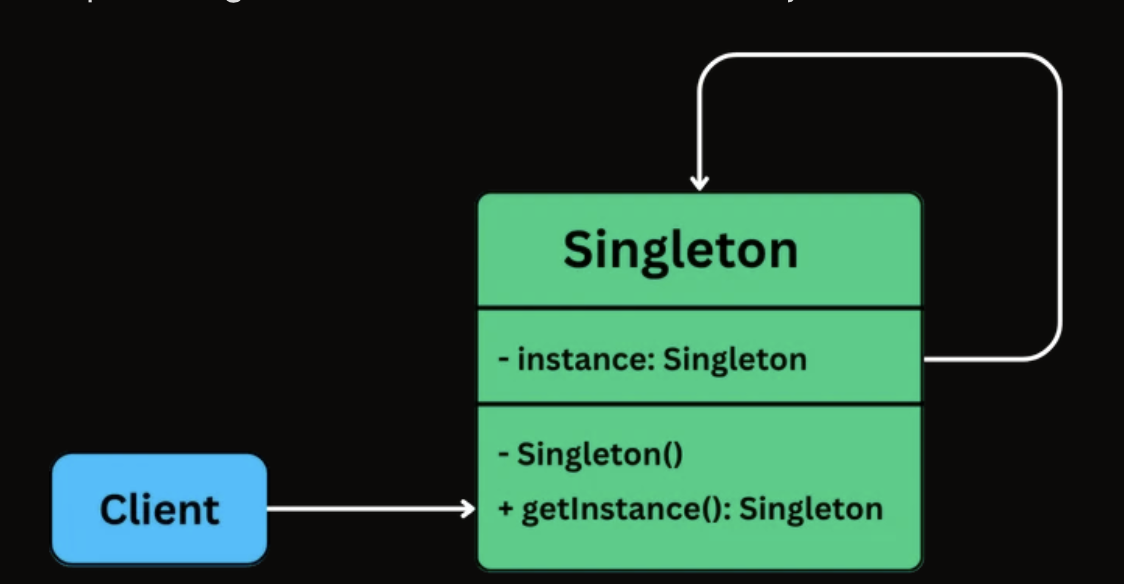

      1. Singleton:



      1. Factory Method

         class SimpleNotificationFactory {
           static createNotification(type: string): Notification {
             switch (type) {
               case 'EMAIL':
                 return new EmailNotification();
               case 'SMS':
                 return new SMSNotification();
               case 'PUSH':
                 return new PushNotification();
               default:
                 throw new Error('Unknown type');
             }
           }
         }

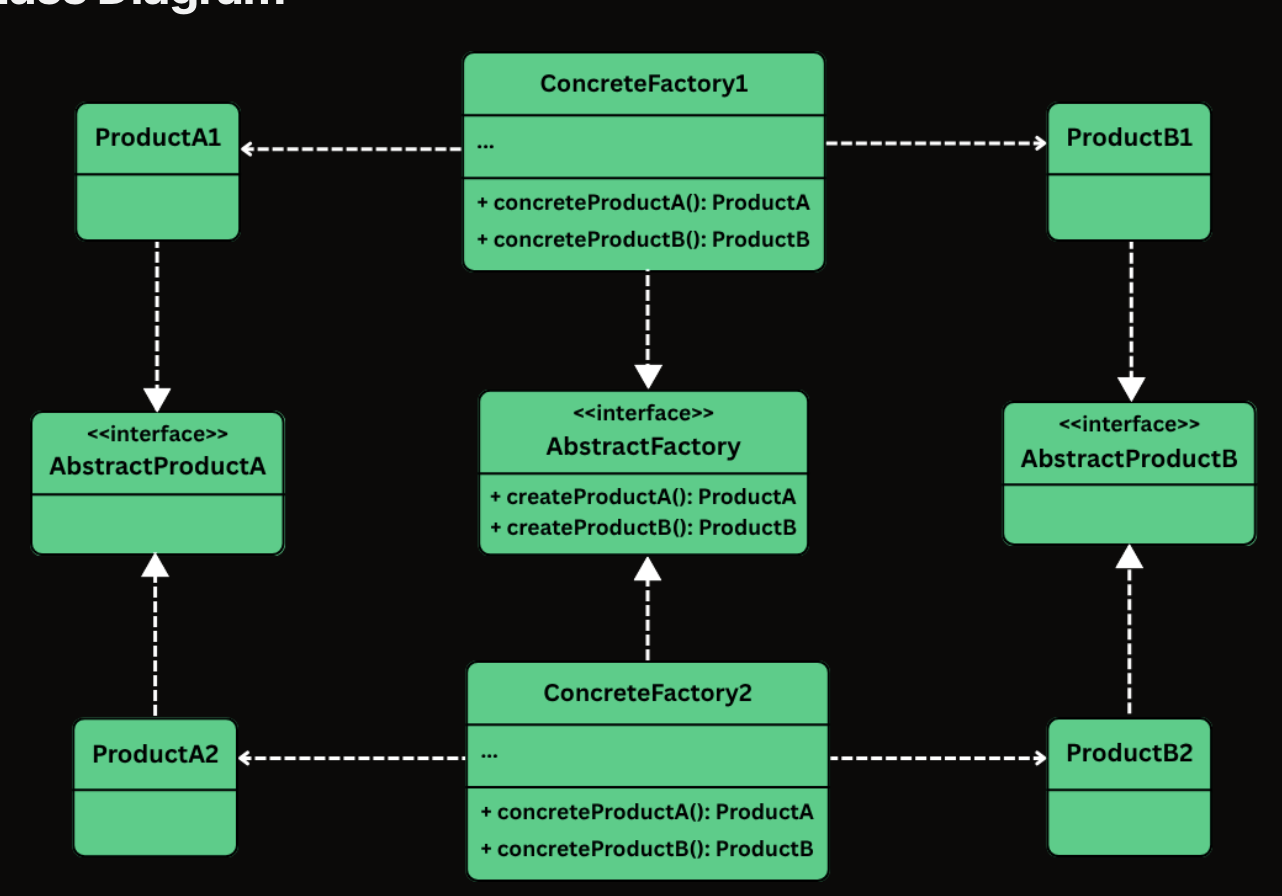

      2. Abstract Factory

         class WindowsFactory implements GUIFactory {
           createButton(): Button {
             return new WindowsButton();
           }

           createCheckbox(): Checkbox {
             return new WindowsCheckbox();
           }
         }


         class WindowsCheckbox implements Checkbox {
           paint(): void {
             console.log('Painting a Windows-style checkbox.');
           }

           onSelect(): void {
             console.log('Windows checkbox selected.');
           }
         }




      3. Builder Design Pattern

         class HttpAppBuilderPattern {
           static main(): void {
             const request1 = new HttpRequest.Builder(
               'https://api.example.com/data'
             ).build();

             const request2 = new HttpRequest.Builder(
               'https://api.example.com/submit'
             )
               .setMethod('POST')
               .setBody('{"key":"value"}')
               .setTimeout(15000)
               .build();

             const request3 = new HttpRequest.Builder(
               'https://api.example.com/config'
             )
               .setMethod('PUT')
               .addHeader('X-API-Key', 'secret')
               .addQueryParam('env', 'prod')
               .setBody('config_payload')
               .setTimeout(5000)
               .build();

             console.log(request1.toString());
             console.log(request2.toString());
             console.log(request3.toString());
           }
         }

         HttpAppBuilderPattern.main();

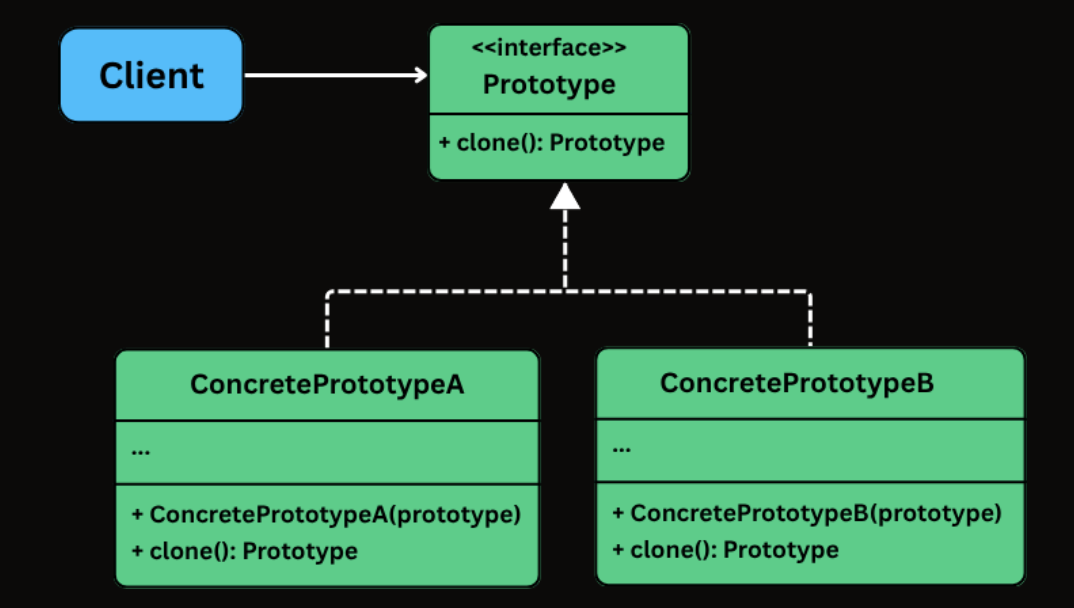

      4. Prototype

         Enemy flying1 = new Enemy("Flying", 100, 10.5, false, "Laser");
         Enemy flying2 = new Enemy("Flying", 100, 10.5, false, "Laser");

         interface EnemyPrototype {
             EnemyPrototype clone();
         }




   2. Structural

      1. Adapter: dùng để gắn vào một cái legacy system

      • Wrap this to match the suitable interface

       // Legacy gateway through adapter
        System.out.println("\n--- Using Legacy Gateway via Adapter ---");

        LegacyGateway legacy = new LegacyGateway();

        processor = new LegacyGatewayAdapter(legacy);

        CheckoutService legacyCheckout = new CheckoutService(processor);

        legacyCheckout.checkout(75.50, "USD");

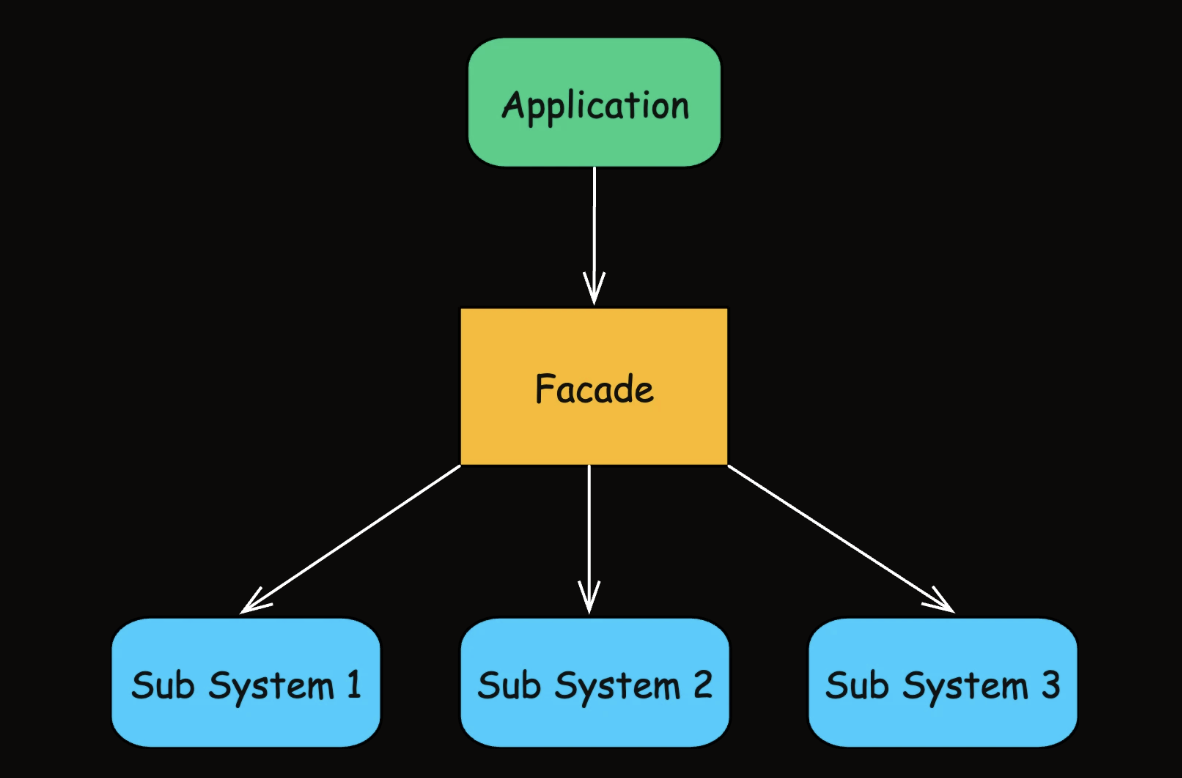

      1. Facade: Centralize the interface



         class DeploymentAppFacade {
           static main(): void {
             const deploymentFacade = new DeploymentFacade();

             // Deploy to production
             deploymentFacade.deployApplication(
               'main',
               'prod.server.example.com'
             );

             // Deploy a feature branch to staging
             console.log('\n--- Deploying feature branch to staging ---');
             deploymentFacade.deployApplication(
               'feature/new-ui',
               'staging.server.example.com'
             );
           }
         }


      2. Decoration: extend thêm feature cho 1 class

         class BoldDecorator extends TextDecorator {
             public BoldDecorator(TextView inner) {
                 super(inner);
             }

             @Override
             public void render() {
                 System.out.print("<b>");
                 inner.render();
                 System.out.print("</b>");
             }
         }


         class TextRendererApp {
           static main(): void {
             const text: TextView = new PlainTextView('Hello, World!');

             process.stdout.write('Plain: ');
             text.render();
             console.log();

             process.stdout.write('Bold: ');
             const boldText: TextView = new BoldDecorator(text);
             boldText.render();
             console.log();

             process.stdout.write('Italic + Underline: ');
             const italicUnderline: TextView = new UnderlineDecorator(
               new ItalicDecorator(text)
             );
             italicUnderline.render();
             console.log();

             process.stdout.write('Bold + Italic + Underline: ');
             const allStyles: TextView = new UnderlineDecorator(
               new ItalicDecorator(new BoldDecorator(text))
             );
             allStyles.render();
             console.log();
           }
         }

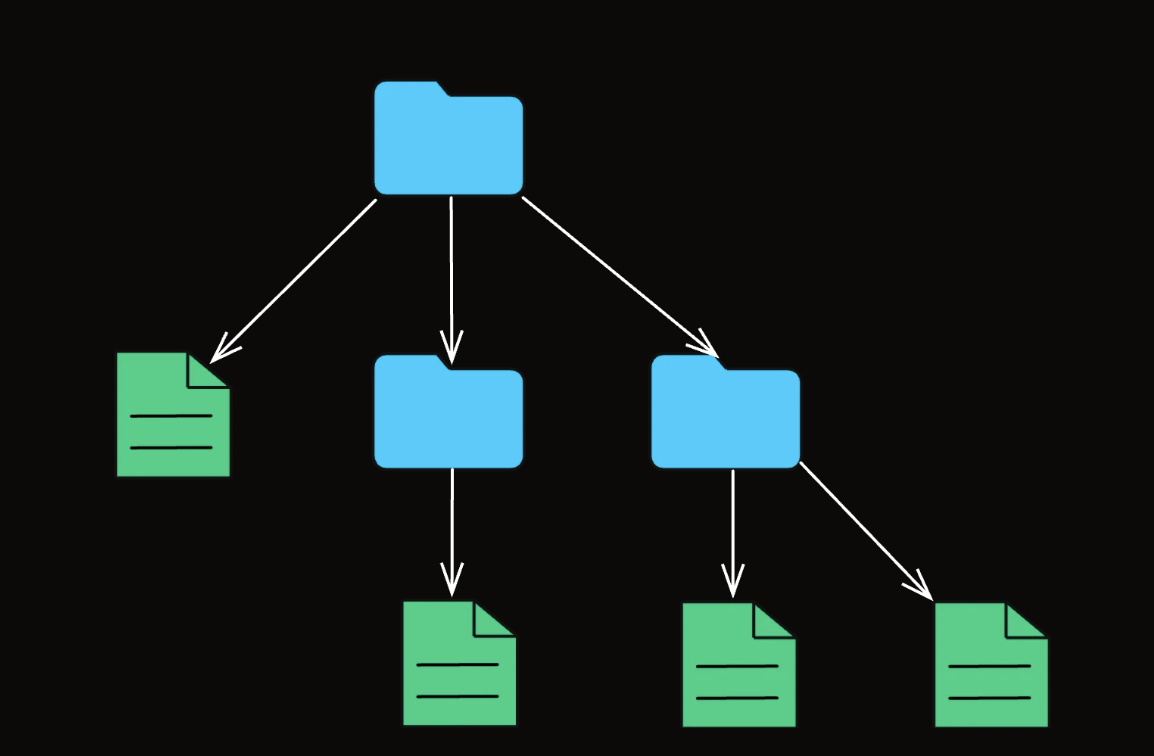

      3. Composite: recursion in recursion, for example: each folder have sub-folder and each files.



         class FileExplorerApp {
            static main(): void {
                const file1: FileSystemItem = new File("readme.txt", 5);
                const file2: FileSystemItem = new File("photo.jpg", 1500);
                const file3: FileSystemItem = new File("data.csv", 300);

                const documents = new Folder("Documents");
                documents.addItem(file1);
                documents.addItem(file3);

                const pictures = new Folder("Pictures");
                pictures.addItem(file2);

                const home = new Folder("Home");
                home.addItem(documents);
                home.addItem(pictures);

                console.log("---- File Structure ----");
                home.printStructure("");

                console.log("\nTotal Size: " + home.getSize() + " KB");

                console.log("\n---- Deleting All ----");
                home.delete();
            }
         }

         ---- File Structure ----
         + Home/
           + Documents/
             - readme.txt (5 KB)
             - data.csv (300 KB)
           + Pictures/
             - photo.jpg (1500 KB)

         Total Size: 1805 KB


      4. Proxy: trung gian



         class ImageGalleryAppV2 {
           static main(): void {
             console.log(
               'Application Started. Initializing image proxies for gallery...'
             );

             // Create lightweight proxies instead of full image objects
             const image1: Image = new ImageProxy('photo1.jpg');
             const image2: Image = new ImageProxy('photo2.png'); // Never displayed
             const image3: Image = new ImageProxy('photo3.gif');

             console.log(
               '\nGallery initialized. No images actually loaded yet.'
             );
             console.log('Image 1 Filename: ' + image1.getFileName()); // Does not trigger image load

             // User clicks on image1
             console.log('\nUser requests to display ' + image1.getFileName());
             image1.display(); // Lazy loading happens here

             // User clicks on image1 again
             console.log(
               '\nUser requests to display ' + image1.getFileName() + ' again.'
             );
             image1.display(); // Already loaded; no loading delay

             // User clicks on image3
             console.log('\nUser requests to display ' + image3.getFileName());
             image3.display(); // Triggers loading for image3

             console.log(
               '\nApplication finished. Note: photo2.png was never loaded.'
             );
           }
         }

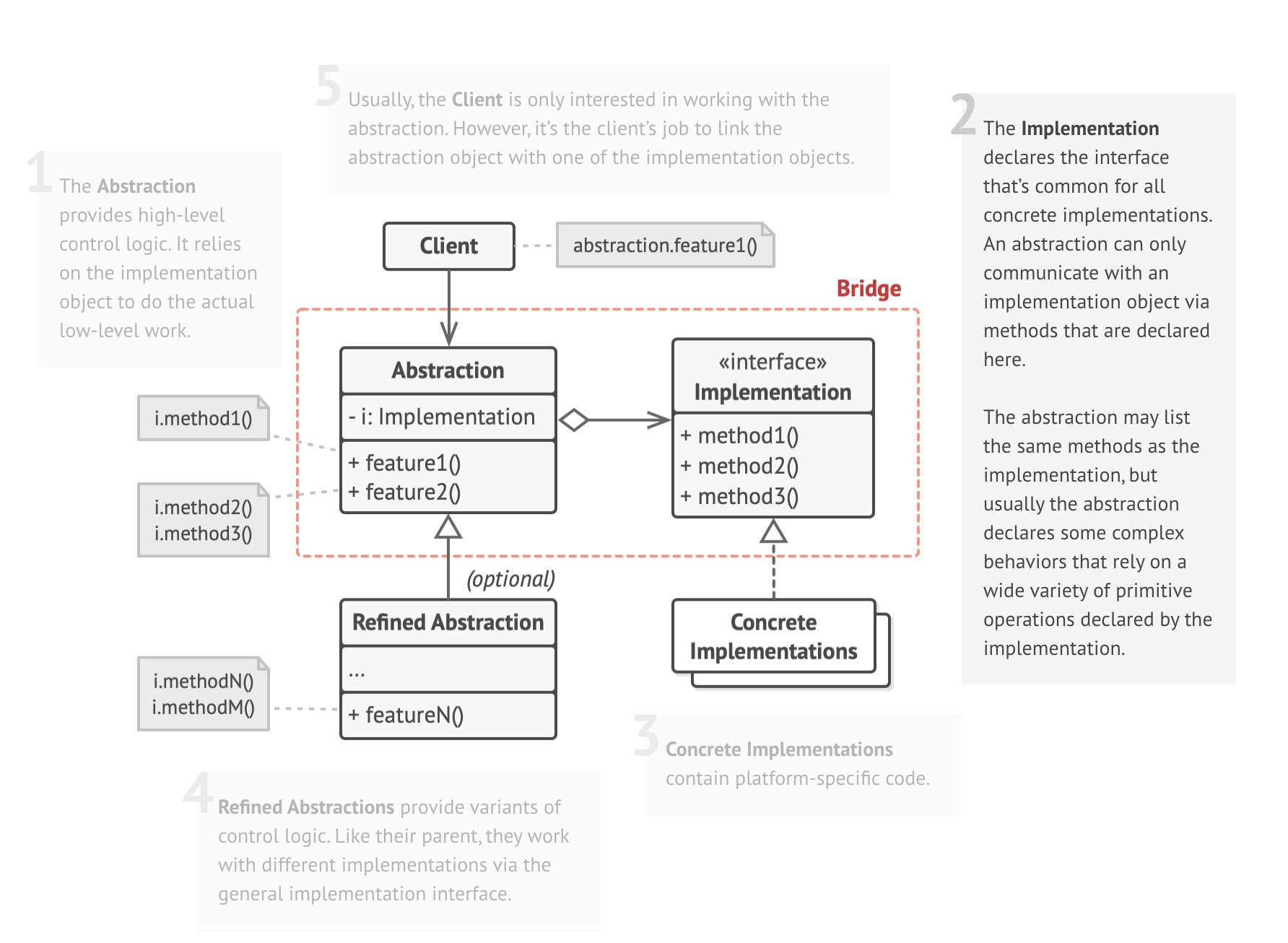

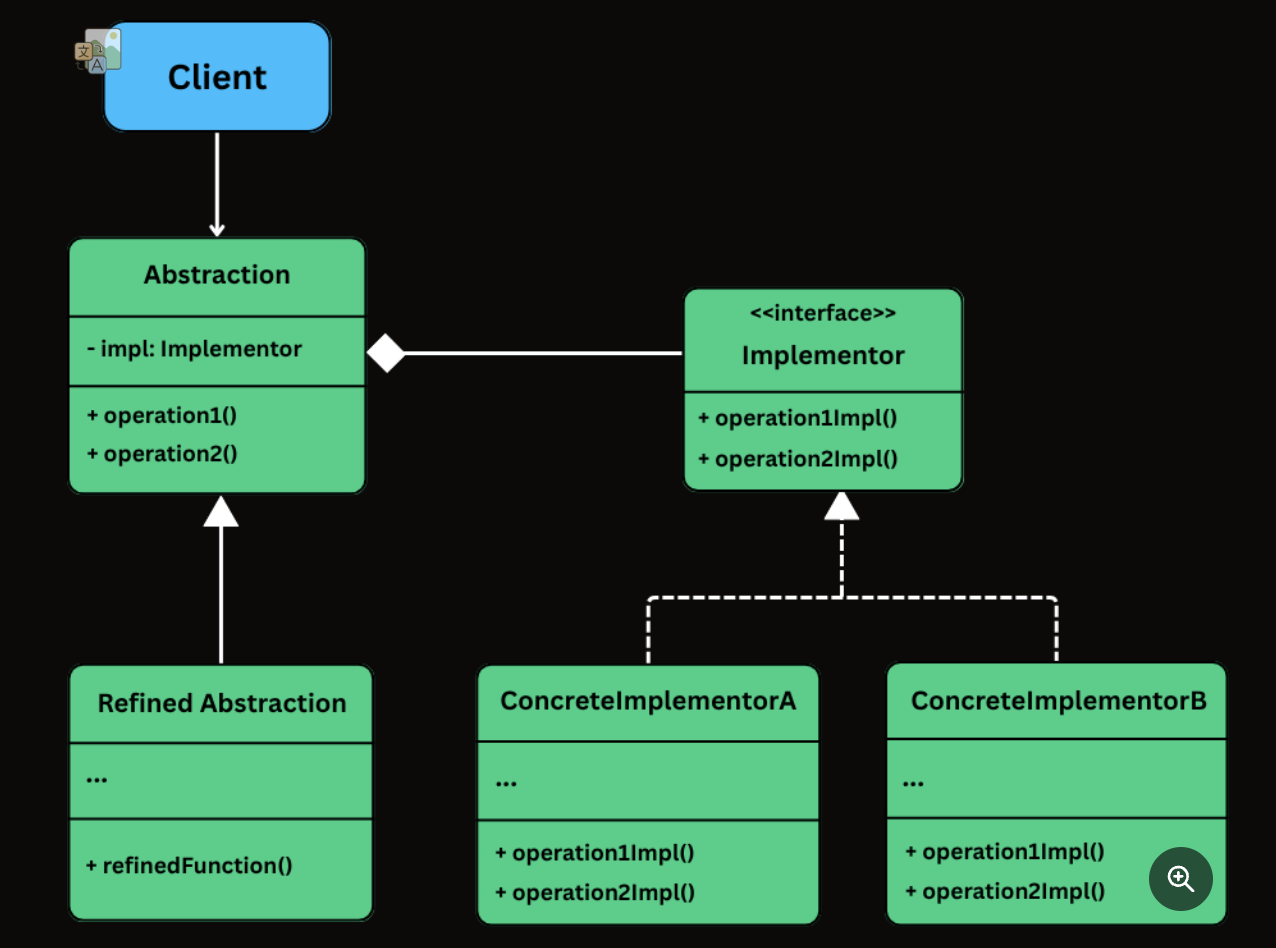

      5. Bridge: viết lại 1 cái abstraction khác để integrate





         class BridgeDemo {
           static main(): void {
             const vector: Renderer = new VectorRenderer();
             const raster: Renderer = new RasterRenderer();

             const circle1: Shape = new Circle(vector, 5);
             const circle2: Shape = new Circle(raster, 5);

             const rectangle1: Shape = new Rectangle(vector, 10, 4);
             const rectangle2: Shape = new Rectangle(raster, 10, 4);

             circle1.draw(); // Vector
             circle2.draw(); // Raster
             rectangle1.draw(); // Vector
             rectangle2.draw(); // Raster
           }
         }

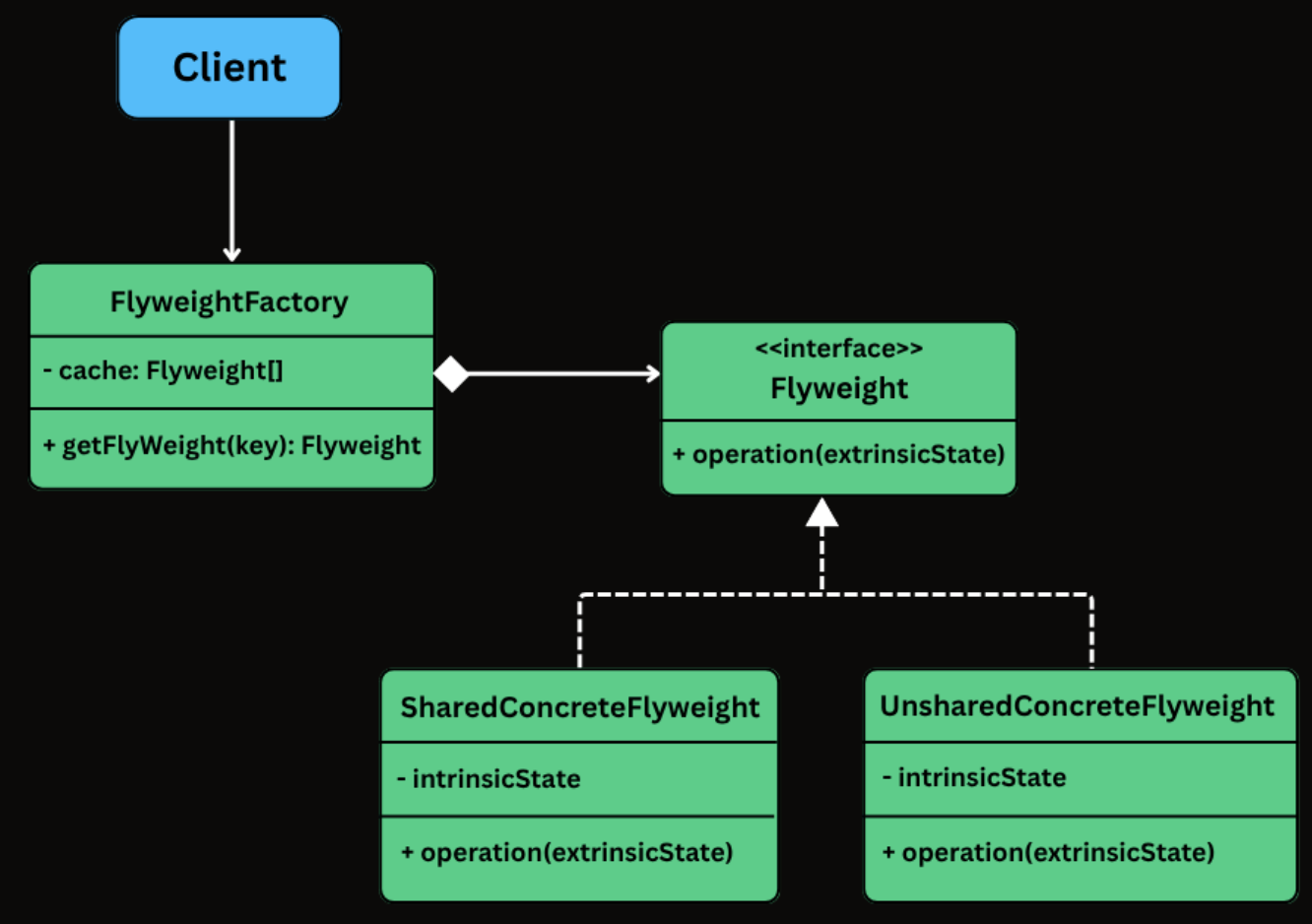

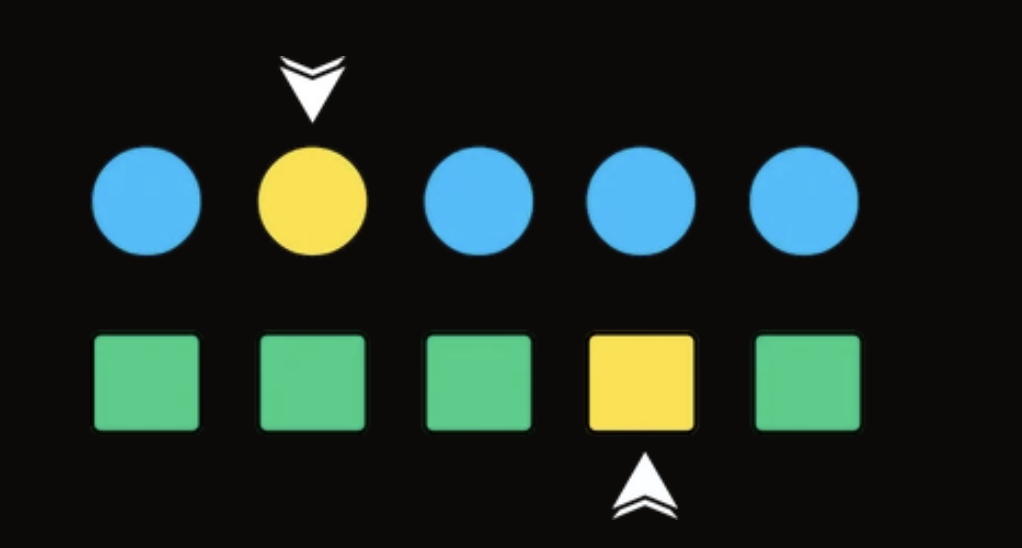

      6. Flyweight: Split nhỏ và share mấy cái chung as much as possible.



         class FlyweightDemo {
           static main(): void {
             const editor = new TextEditorClient();

             // Render "Hello" with same style
             const word = 'Hello';
             for (let i = 0; i < word.length; i++) {
               editor.addCharacter(
                 word.charAt(i),
                 10 + i * 15,
                 50,
                 'Arial',
                 14,
                 '#000000'
               );
             }

             // Render "World" with different font and color
             const word2 = 'World';
             for (let i = 0; i < word2.length; i++) {
               editor.addCharacter(
                 word2.charAt(i),
                 10 + i * 15,
                 100,
                 'Times New Roman',
                 14,
                 '#3333FF'
               );
             }

             editor.renderDocument();
           }
         }


   3. Behavioral

      1. Iterator Design: Loop through the data structure

      interface Iterator<T> {
        hasNext(): boolean;
        next(): T;
      }

      class MusicPlayer {
        static main(): void {
          const playlist = new Playlist();
          playlist.addSong('Shape of You');
          playlist.addSong('Bohemian Rhapsody');
          playlist.addSong('Blinding Lights');

          const iterator: Iterator<string> = playlist.createIterator();

          console.log('Now Playing:');
          while (iterator.hasNext()) {
            console.log(' 🎵 ' + iterator.next());
          }
        }
      }






      1. Observer Pattern: Pub/Sub state machine.

      class FitnessAppObserverDemo {
        static main(): void {
          const fitnessData = new FitnessData();

          const display = new LiveActivityDisplay();
          const logger = new ProgressLogger();
          const notifier = new GoalNotifier();

          // Register observers
          fitnessData.registerObserver(display);
          fitnessData.registerObserver(logger);
          fitnessData.registerObserver(notifier);

          // Simulate updates
          fitnessData.newFitnessDataPushed(500, 5, 20);
          fitnessData.newFitnessDataPushed(9800, 85, 350);
          fitnessData.newFitnessDataPushed(10100, 90, 380); // Goal should trigger

          // Daily reset
          notifier.reset();
          fitnessData.dailyReset();
        }
      }

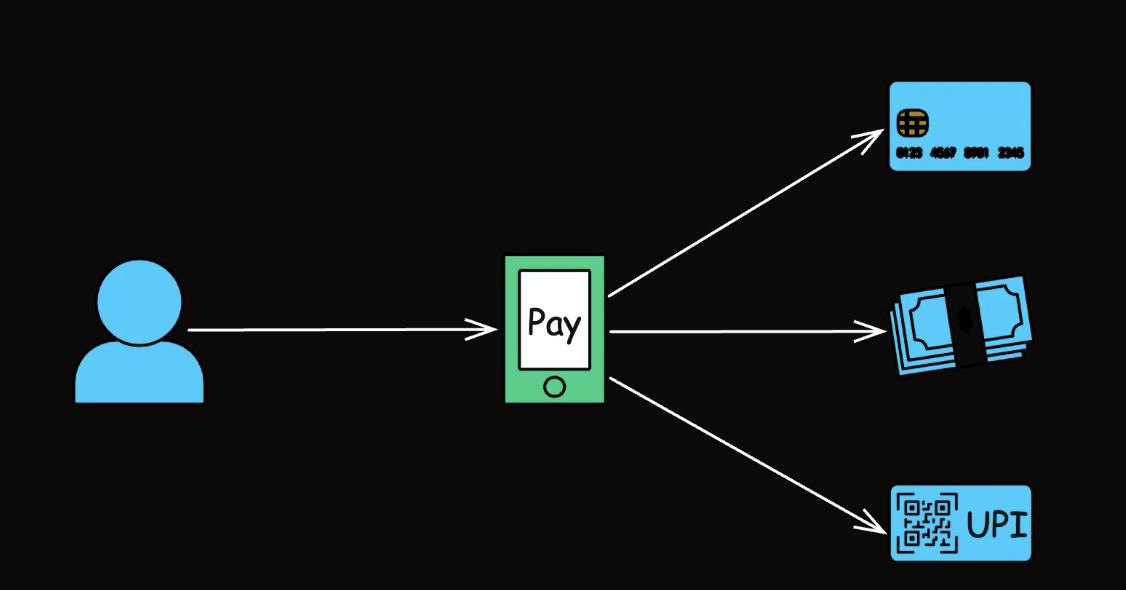

      1. Strategy Design Pattern: Parking strategy



         class ECommerceAppV2 {
           static main(): void {
             const order1 = new Order();

             // Create different strategy instances
             const flatRate: ShippingStrategy = new FlatRateShipping(10.0);
             const weightBased: ShippingStrategy = new WeightBasedShipping(2.5);
             const distanceBased: ShippingStrategy = new DistanceBasedShipping(
               5.0
             );
             const thirdParty: ShippingStrategy = new ThirdPartyApiShipping(
               7.5,
               0.02
             );

             // Create context with an initial strategy
             const shippingService = new ShippingCostService(flatRate);

             console.log('--- Order 1: Using Flat Rate (initial) ---');
             shippingService.calculateShippingCost(order1);

             console.log('\n--- Order 1: Changing to Weight-Based ---');
             shippingService.setStrategy(weightBased);
             shippingService.calculateShippingCost(order1);

             console.log('\n--- Order 1: Changing to Distance-Based ---');
             shippingService.setStrategy(distanceBased);
             shippingService.calculateShippingCost(order1);

             console.log('\n--- Order 1: Changing to Third-Party API ---');
             shippingService.setStrategy(thirdParty);
             shippingService.calculateShippingCost(order1);

             // Adding a NEW strategy is easy:
             // 1. Create a new class implementing ShippingStrategy (e.g., FreeShippingStrategy)
             // 2. Client can then instantiate and use it:
             //    const freeShipping: ShippingStrategy = new FreeShippingStrategy();
             //    shippingService.setStrategy(freeShipping);
             //    shippingService.calculateShippingCost(primeMemberOrder);
             // No modification to ShippingCostService is needed!
           }
         }

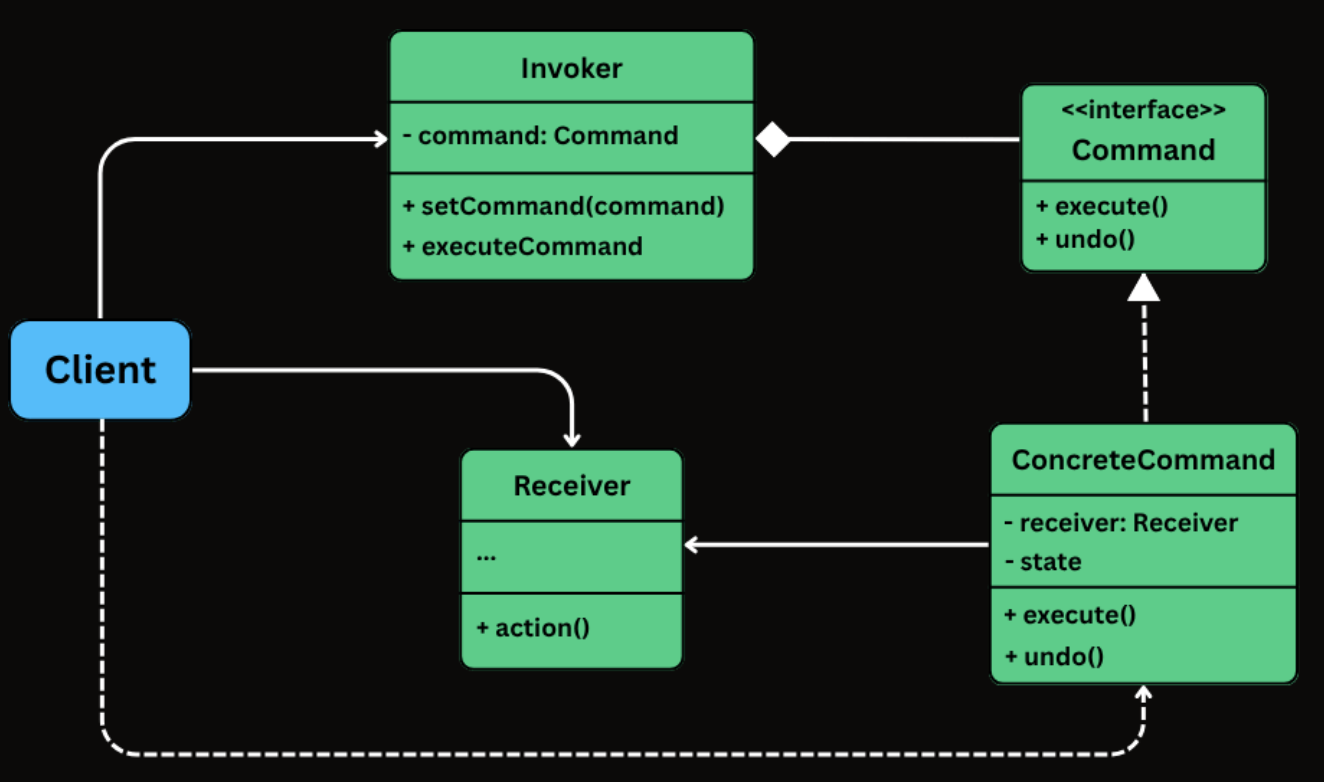

7. Command Pattern: IoT Project



   interface Command {
      execute(): void;
      undo(): void;
   }

   class LightOnCommand implements Command {
      private readonly light: Light;

      constructor(light: Light) {
          this.light = light;
      }

      execute(): void {
          this.light.on();
      }

      undo(): void {
          this.light.off();
      }
   }

   class SmartHomeApp {
      static main(): void {
          // Receivers
          const light = new Light();
          const thermostat = new Thermostat();

          // Commands
          const lightOn: Command = new LightOnCommand(light);
          const lightOff: Command = new LightOffCommand(light);
          const setTemp22: Command = new SetTemperatureCommand(thermostat, 22);

          // Invoker
          const button = new SmartButton();

          // Simulate usage
          console.log("→ Pressing Light ON");
          button.setCommand(lightOn);
          button.press();

          console.log("→ Pressing Set Temp to 22°C");
          button.setCommand(setTemp22);
          button.press();

          console.log("→ Pressing Light OFF");
          button.setCommand(lightOff);
          button.press();

          // Undo sequence
          console.log("\n↶ Undo Last Action");
          button.undoLast();  // undo Light OFF

          console.log("↶ Undo Previous Action");
          button.undoLast();  // undo Set Temp

          console.log("↶ Undo Again");
          button.undoLast();  // undo Light ON
      }
   }


8. State Pattern: multiple state machine



   ```jsx class IdleState implements MachineState { selectItem(context: VendingMachine, itemCode: string): void { console.log(“Item selected: “ + itemCode); context.setSelectedItem(itemCode); context.setState(new ItemSelectedState()); }

   insertCoin(context: VendingMachine, amount: number): void { console.log(“Please select an item before inserting coins.”); }

   dispenseItem(context: VendingMachine): void { console.log(“No item selected. Nothing to dispense.”); } }

class ItemSelectedState implements MachineState { selectItem(context: VendingMachine, itemCode: string): void { console.log(“Item already selected: “ + context.getSelectedItem()); }

  insertCoin(context: VendingMachine, amount: number): void {
      console.log("Inserted $" + amount + " for item: " + context.getSelectedItem());
      context.setInsertedAmount(amount);
      context.setState(new HasMoneyState());
  }

  dispenseItem(context: VendingMachine): void {
      console.log("Insert coin before dispensing.");
  }    }    ```

• Vendor Machine: current state to change this.

  class VendingMachine {
     private currentState: MachineState;
     private selectedItem: string;
     private insertedAmount: number;

     constructor() {
         this.currentState = new IdleState(); // Initial state
     }

     setState(newState: MachineState): void {
         this.currentState = newState;
     }

     setSelectedItem(itemCode: string): void {
         this.selectedItem = itemCode;
     }

     setInsertedAmount(amount: number): void {
         this.insertedAmount = amount;
     }

     getSelectedItem(): string {
         return this.selectedItem;
     }

     selectItem(itemCode: string): void {
         this.currentState.selectItem(this, itemCode);
     }

     insertCoin(amount: number): void {
         this.currentState.insertCoin(this, amount);
     }

     dispenseItem(): void {
         this.currentState.dispenseItem(this);
     }

     reset(): void {
         this.selectedItem = "";
         this.insertedAmount = 0.0;
         this.currentState = new IdleState();
     }
  }


1. Template Method: reuse template when expose the file

   class CsvReportExporter extends AbstractReportExporter {
      //prepareData() not overridden - default will be used
      //openFile() not overridden - default will be used

      protected writeHeader(data: ReportData): void {
          console.log("CSV: Writing header: " + data.getHeaders().join(","));
      }

      protected writeDataRows(data: ReportData): void {
          console.log("CSV: Writing data rows...");
          for (const row of data.getRows()) {
              console.log("CSV: " + Array.from(row.values()));
          }
      }

      // writeFooter() not overridden - default will be used
      // closeFile() not overridden - default will be used
   }


   class PdfReportExporter extends AbstractReportExporter {
      //prepareData() not overridden - default will be used
      //openFile() not overridden - default will be used

      protected writeHeader(data: ReportData): void {
          console.log("PDF: Writing header: " + data.getHeaders().join(","));
      }

      protected writeDataRows(data: ReportData): void {
          console.log("PDF: Writing data rows...");
          for (const row of data.getRows()) {
              console.log("PDF: " + Array.from(row.values()));
          }
      }

      // writeFooter() not overridden - default will be used
      // closeFile() not overridden - default will be used
   }


2. Visitor Pattern: The Visitor Design Pattern is a behavioral pattern that enables the addition of new operations to existing object structures without modifying their classes.

   class VisitorPatternDemo {
     static main(): void {
       const shapes: Shape[] = [
         new Circle(5),
         new Rectangle(10, 4),
         new Circle(2.5),
       ];

       console.log('=== Calculating Areas ===');
       const areaCalculator: ShapeVisitor = new AreaCalculatorVisitor();
       for (const shape of shapes) {
         shape.accept(areaCalculator);
       }

       console.log('\n=== Exporting to SVG ===');
       const svgExporter: ShapeVisitor = new SvgExporterVisitor();
       for (const shape of shapes) {
         shape.accept(svgExporter);
       }
     }
   }

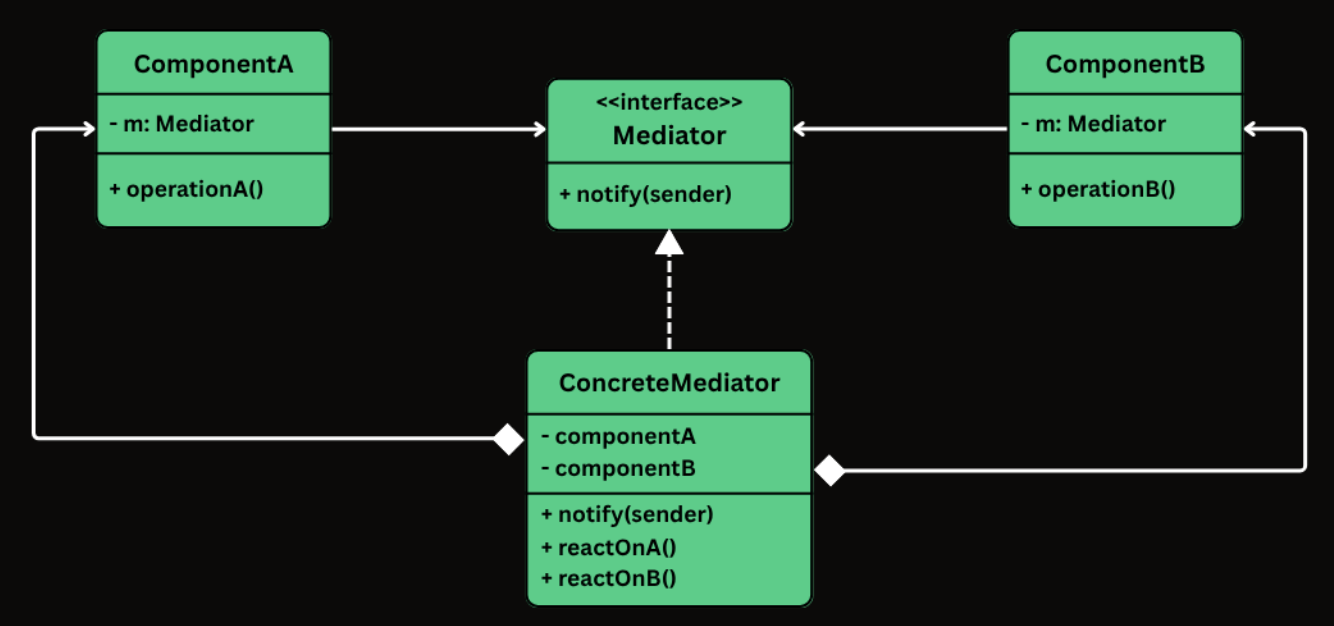

3. Mediator Pattern: defines an object (the Mediator) to encapsulate how a set of objects interact.

1. Memento: capture and store an object’s internal state so it can be restored later.



   class TextEditorUndoV2 {
     static main(): void {
       const editor = new TextEditor();
       const undoManager = new TextEditorUndoManager();

       editor.type('Hello');
       undoManager.save(editor); // save state: Hello

       editor.type(' World');
       undoManager.save(editor); // save state: Hello World

       editor.type('!');
       console.log('Current Content: ' + editor.getContent()); // Hello World!

       console.log('\n--- Undo 1 ---');
       undoManager.undo(editor); // Back to: Hello World

       console.log('\n--- Undo 2 ---');
       undoManager.undo(editor); // Back to: Hello

       console.log('\n--- Undo 3 ---');
       undoManager.undo(editor); // Nothing left to undo
     }
   }

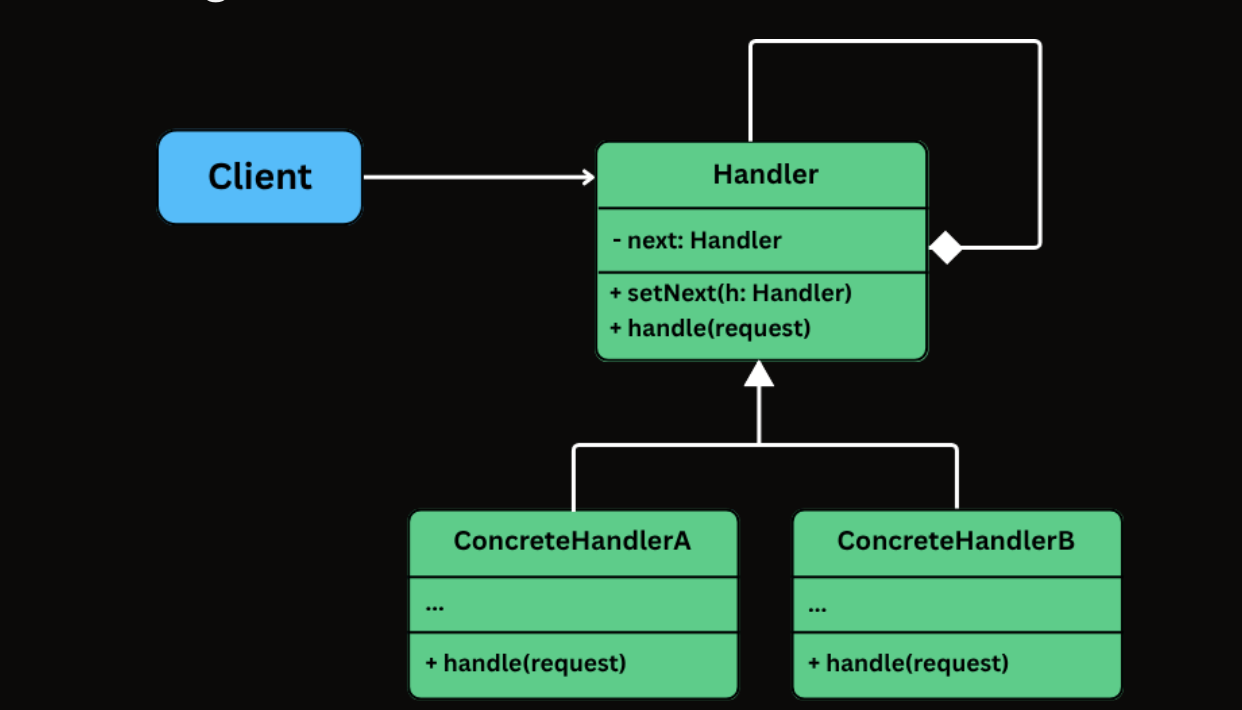

2. Chain of Responsibility: change it to along multiple handlers



   class RequestHandlerApp {
     static main(): void {
       // Create handlers
       const auth: RequestHandler = new AuthHandler();
       const authorization: RequestHandler = new AuthorizationHandler();
       const rateLimit: RequestHandler = new RateLimitHandler();
       const validation: RequestHandler = new ValidationHandler();
       const businessLogic: RequestHandler = new BusinessLogicHandler();

       // Build the chain
       auth.setNext(authorization);
       authorization.setNext(rateLimit);
       rateLimit.setNext(validation);
       validation.setNext(businessLogic);

       // Send a request through the chain
       const request = new Request(
         'john',
         'ADMIN',
         10,
         '{ "data": "valid" }'
       );
       auth.handle(request);

       console.log('\n--- Trying an invalid request ---');
       const badRequest = new Request(null, 'USER', 150, '');
       auth.handle(badRequest);
     }
   }


3. Some communicaton patterns
   1. MVC Pattern
   2. Repository Pattern
   3. Producer-Consumer Pattern
   4. Thread Pool pattern.

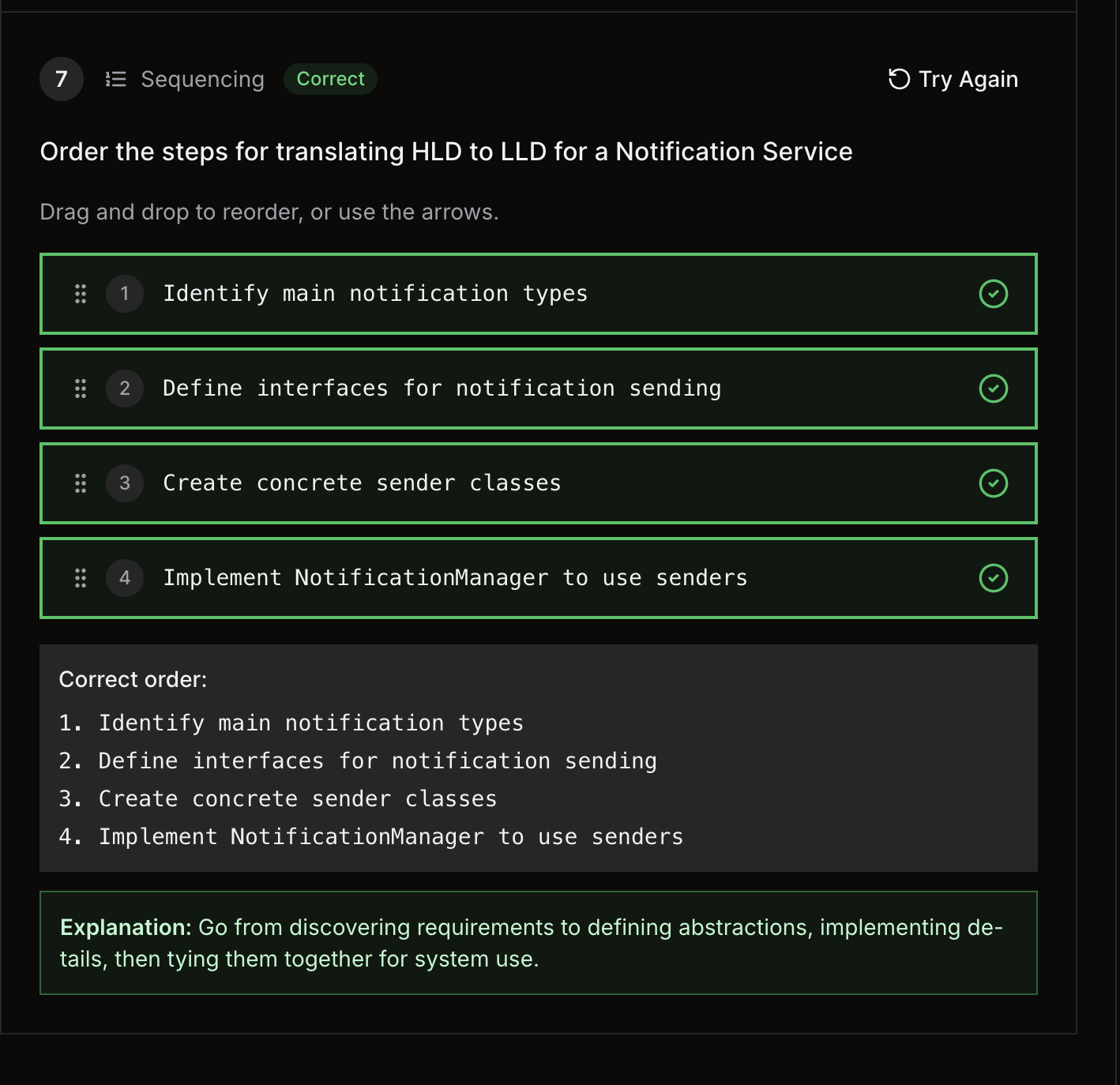

4. How to approach the LLD interview ?
   1. Design
      1. Clarify the requirements.
      2. Choose the entities.
      3. Define fields for entities.
      4. Define methods for entities.
      5. Define central class and relationship functions: use-a, has-a, is-a.
   2. Implementation
      1. Follow SOLID, Coding Patterns.
      2. Follow Design Patterns.
      3. Handle concurrency.
      4. Handle edge cases, exceptions.
   3. How to write a class for function ?
      1. Clarity: understand the thinking process.
      2. Intent: have intent when and why to use it.
      3. Single responsibility: Each class takes 1 responsibility to do.
   4. How to decide the pattern ?
      1. Creational Patterns:
         • How the object are created using singleton or clone ?
      2. Structural Pattern:
         • How this system is adapt to new larger system ?
      3. Behavior Pattern:
         • How each components interact with others ?
5. How to implement DSA tốt ?
   • High level idea đầu tiên: Ne thế mạnh của mình
   • Break thành nhiều phần nhỏ hơn ⇒ implement từng phần: Using Si here.
