Software Architect Template

Here is plan for software architect template

1. What is solution architect ?

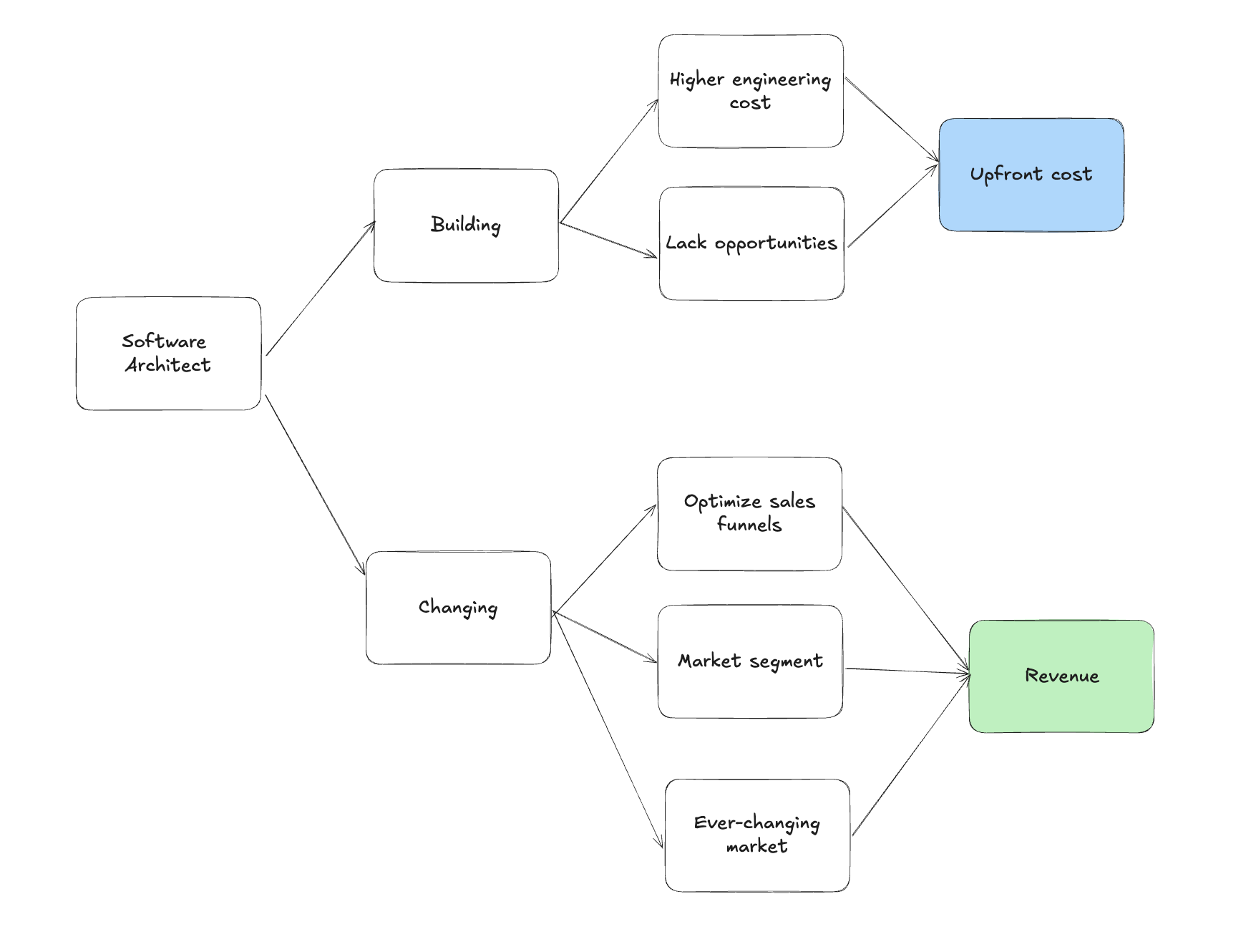

  • The main purpose of software architecture is to reduce the cost of building and changing the software.

2. Software Architect questions ?

  • Programming language.

  • Code reuse across platform.

  • Early error detection (compile-time vs runtime error detection, breadth of validation).

  • Availability and cost of hiring the right talent; learning curve for new hires

  • Readability and refactorability of code.

  • Appronach to code composition, embrancing the change.

  • Data store and approach to data modeling.

  • Application-specific data model, and the blast radius from changing it

  • Performance and latency in all tiers and platforms

  • Scalability and redundancy.

  • Spiky traffic patterns, autoscaling, capacity planning

  • Error recovery

  • Logging, telemetry, and other instrumentation

  • Reducing complexity

  • User interfaces and their maintainability

  • External APIs

  • User identity and security

  • Hardware and human costs of the infrastructure and its maintenance

  • Enabling multiple concurrent development workstreams

  • Enabling testability.

  • Fast-tracking development by adopting third-party frameworks

3. Programming Language

  • Consier: strong static typing, explicitly defined data structures, interfaces, isomorphism, third-party libraries, ease of refactoring, functional and object-oriented, ease and cost of hiring, learning curve for new hires, general readability.
  1. Strong static typing:
  • Some language have strong and weak typing.
  • Error is caught early.
  1. Static and dynamic type checking.
  • Static type: check type at compiled time.
  • Dynamic type: check in run time.

=> To produce reliable code, you need a language featuring both strong typing and static type checking.

  1. Support for explicitly defined data structures: interface, class to define data structure at compile time.

  2. Support for interfaces: it is like contract for dependency injection.

  3. Isomorphism: In the most common scenario, that’s the ability of the language to run on the client platform (browser and/or mobile devices) and on the server.

    • Native isomorphism: run both in browser and server.
    • Transpiled isomorphism: TypeScript can transpile to JavaScript. React Native and Apache Cordorva in mobile, NodeJS in server side, mapping from language to language.
    • Generated isomorphism: Kotlin can run in server using Java Virtual Machine or on Android devices, mapping objects in language.

=> Native and Transpiled Isomorphic languages are extremely useful in cross-platform development, by allowing you to share your code and third-party libraries across platforms.

  1. Availability of third-party libraries: JavaScript/TypeScript, Java and Python.

  2. Ease of refactoring: we have refactoring tools to do this, or need to consider the logic, converting methods to top-level functions, converting static members to global variables or constants, converting inner classes to toplevel classes, moving declarations and implementations between modules.

  3. Functional vs Object-Oriented: Functional is black-box, OOP is white-box. OOP is better when you want to model a real-life objects, FP for data transformations or pipelines.

  4. Ease and cost of hiring.

  5. Learning curve.

  6. Readability.

4. Datastore

  • Both User Interface and Datastore must depend on the Business Logic.

5. Data Model

  • The main idea behind DDD is to create a model in the software that closely follows the specification written in the ubiquitous language => make your code easy to understand.

  • Using CQRS + Event Store to make interface clean.

6. Latency

  1. Client Latency

  • Lightweight framework: React/Redux.

  • Minify your JavaScript code.

  • Embrace ayschronusly.

  • Building SPA app: load all assets once, and reply on AJAX calls to server to operate => apply lazy load.

  • Perform CPU-intensive: operate in server side.

  1. Network latency:

  • Large number of transmissions between client and server.

  • Slow handshake.

  • Slow connection speed.

Solutions:

  • Bundle scripts as few as possible, using webpack + tree handshaking + minify the scripts.

  • Bundle style sheets as few files as possible.

  • For responsive design, scale the images dynamically, do not load new image.

  • Serve all static resources in CDN.

  • Minimize the number of API endpoints, make sure multiple of functions can be called with round-trip.

  • Apply API call in geographic regions.

  • Leverage local storage to persist infrequently changing of data.

Server latency:

  • Computational latency.

  • Database latency.

  • Sychronization latency.
